Industrial spindles are offered in several configurations and with pulleys for "V" belt or timing belt drive. They can be ordered with #1 Morse internal tapers or ready to accept an ER-16 collet. Some headstocks are available complete with DC motor and electronic speed control. These can be run on any current worldwide from 110VAC to 240VAC, 50 or 60 Hz.

Flat bottomed and round cartridge spindles are available with a choice of pulley and spindle nose tapers and threads (Click on image for a larger view).

Features

All Sherline Industrial spindles feature Class 5, lifetime-lubricated bearings with adjustable preload. The headstocks are made from extruded 6061-T6 aluminum and have a black anodized finish. Cartridge spindle bodies are turned from bar stock steel and have a black oxide finish. The steel spindle shaft has a .405" (10mm) hole through the center. The spindle nose has a 3/4-16 external thread and a #1 Morse internal taper. All spindles can also be ordered threaded to accept an ER-16 collet. All headstocks and spindles can be ordered with either a cogged timing belt pulley or a 2-step "V" belt pulley. Pulleys are machined from 6061-T6 aluminum. The timing belt pulley is a 1/5" pitch, 30-tooth, unflanged pulley designed to be used with XL-series rubber timing belts. (The drive pulley used with it should be flanged.) Headstock bearings are rated for a continuous speed up to approximately 3000 RPM with factory preload adjustment of .0002". Operating speeds up to 10,000 RPM are possible with a slightly looser preload setting of .0003".

Specifications

Runout at spindle nose: 0.001" (Most are within .0005")
End play at factory preload setting: .0002" (preload is adjustable)

3D Drawings

Sherline now offers 3D CAD files for many of our most popular slides and spindles in .IGS format for designers who need to spec our parts into their machine designs.

For those who need a free .IGS file viewer, see http://igsviewer.com/. (Make sure to click on the correct download link. The page promotes a number of other downloads and can be confusing.)

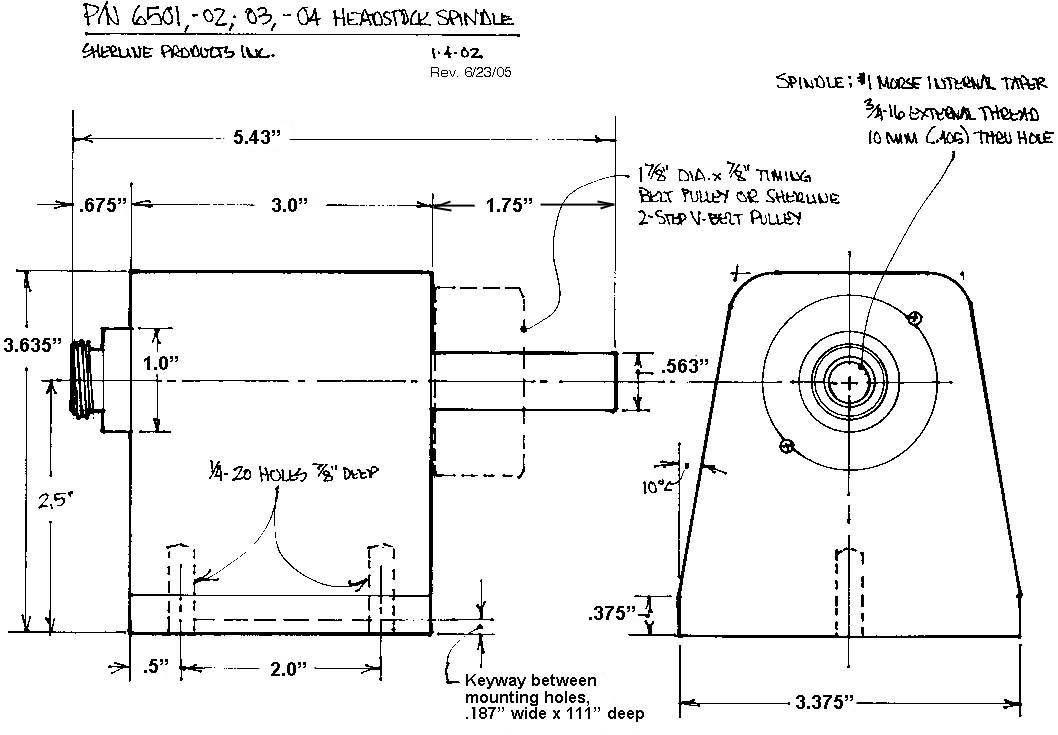

Industrial Headstocks and Spindles on Flat Bases

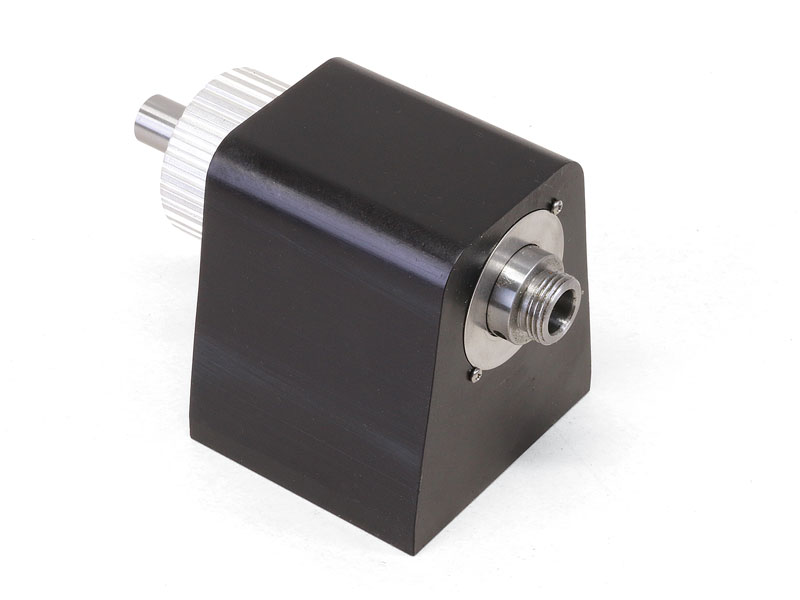

P/N 6501 P/N 6502

(Click on images for a larger view).

3/4-16/#1 Morse Spindles

  • Price: $299.57
  • P/N 6501: with cog belt pulley
  • P/N 6502: with 2-step "V" belt pulley
  • Each comes standard with two 1/4-20 mounting holes and alignment key slot on bottom of base

NOTE: A similar spindle with a dovetailed base is available mounted on a single-axis slide. (See manual slides, P/N 6530/6531) The dovetailed slide is also available with a DC motor and speed control.

P/N 6503 P/N 6504

(Click on images for a larger view).

NOTE: We do not sell collets used with the ER-16 spindle. Those are available through MSC Industrial Supply Co. or other tool supply sources.

ER-16 Spindles

  • Price: $340.36
  • P/N 6503: with cog belt pulley
  • P/N 6504: with 2-step "V" belt pulley
  • Each comes standard with two 1/4-20 mounting holes and alignment key slot on bottom of base
  • ER-16 collet nut

Back to top

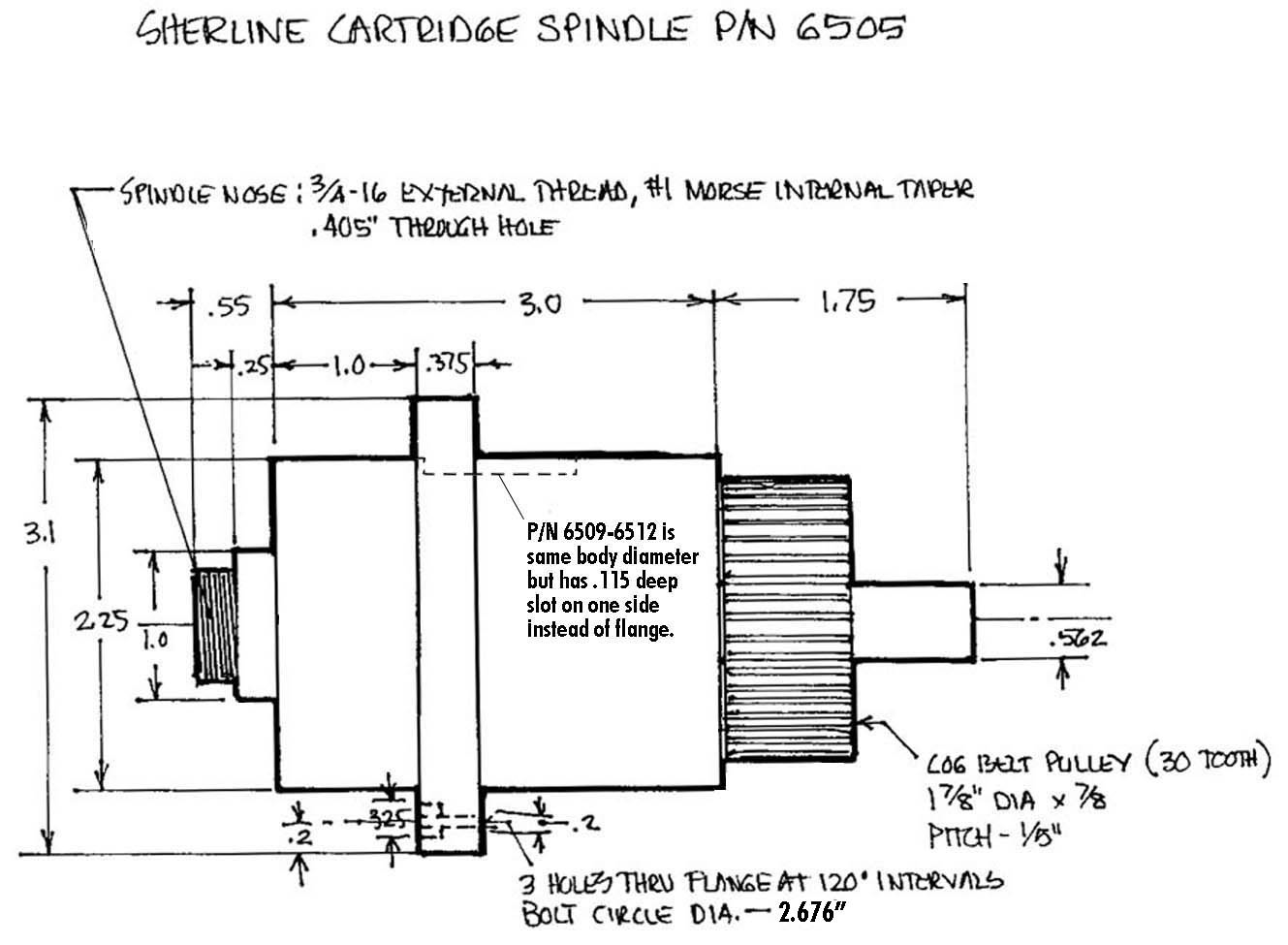

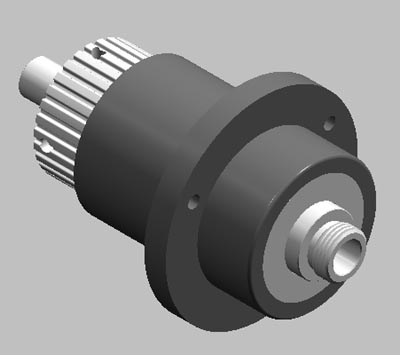

Industrial Flanged Cartridge Spindles

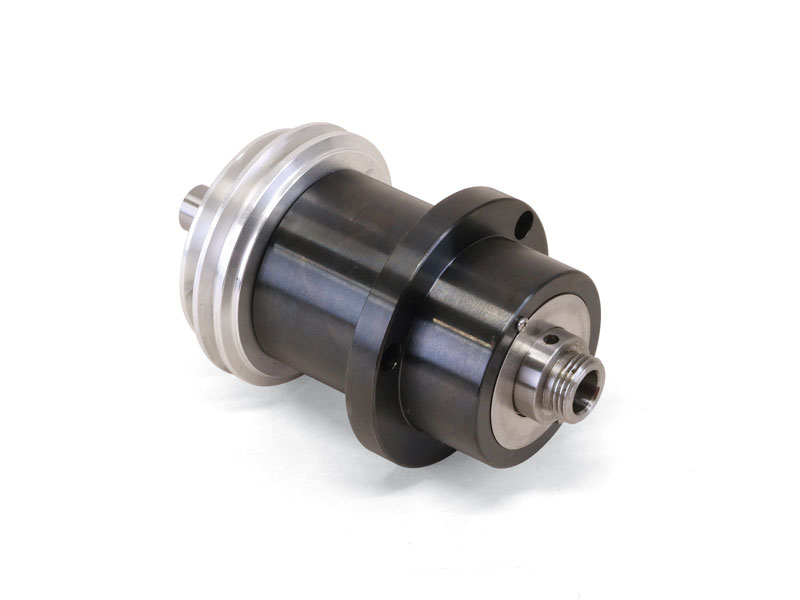

P/N 6505 P/N 6506

(Click on images for a larger view).

3/4-16/#1 Morse Spindles

  • Price: $299.57
  • P/N 6505: with cog belt pulley
  • P/N 6506: with 2-step "V" belt pulley
  • Spindle body outside diameter-2.25"
  • 12L14 steel with black oxide finish
P/N 6507 P/N 6508

(Click on images for a larger view).

NOTE: We do not sell the collets used with the ER-16 spindle. Those are available through MSC Industrial Supply Co. or other tool supply sources.

ER-16 Spindles

  • Price: $340.36
  • P/N 6507: with cog belt pulley
  • P/N 6508: with 2-step "V" belt pulley
  • Spindle body outside diameter-2.25"
  • 12L14 steel with black oxide finish
  • ER-16 collet nut

Back to top

2.25" Round Industrial Cartridge Spindles

P/N 6509 P/N 6510

(Click on images for a larger view).

3/4-16/#1 Morse Spindles

  • Price: $269.40
  • P/N 6509: with cog belt pulley
  • P/N 6510: with 2-step "V" belt pulley
  • 12L14 steel with black oxide finish
P/N 6511 P/N 6512

(Click on images for a larger view).

NOTE: We do not sell the collets used with the ER-16 spindle. Those are available through MSC Industrial Supply Co. or other tool supply sources.

ER-16 Spindles

  • Price: $310.20
  • P/N 6511: with cog belt pulley
  • P/N 6512: with 2-step "V" belt pulley
  • 12L14 steel with black oxide finish
  • ER-16 collet nut


Back to top

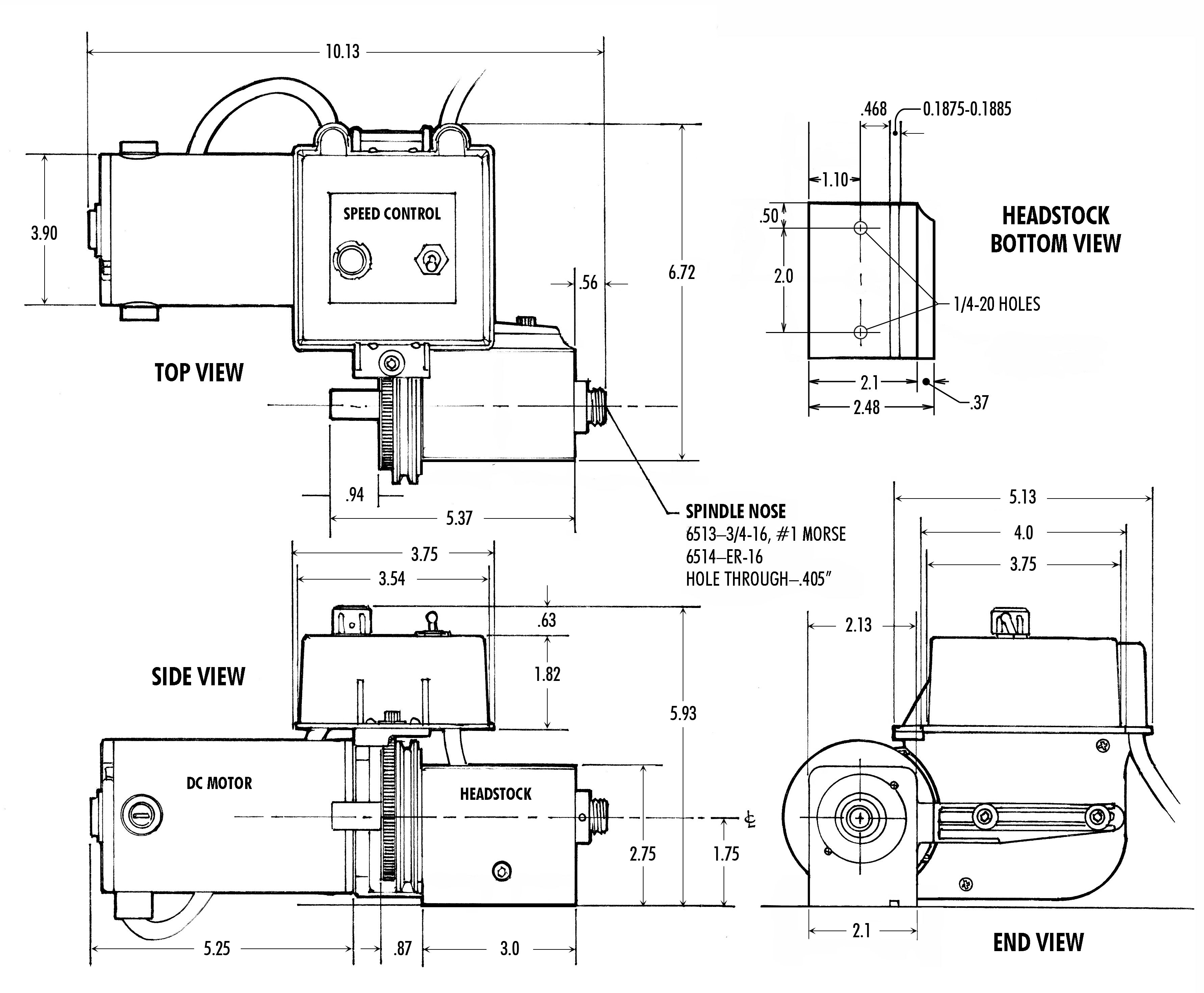

Sherline Headstock and Spindle (Flat Base) with 90-Volt DC Motor

P/N 6513

(Click on image for a larger view).

3/4-16/#1 Morse Spindle

  • Price: $571.06
  • P/N 6513-Spindle nose: 3/4-16 external thread, #1 Morse internal taper
  • 1/2 HP 90-volt high-torque DC motor (single direction)
  • 2-step "V" belt pulley (2nd position for more torque at low RPM)
  • Fiberglass-reinforced urethane drive belt
  • Variable speed electronic speed control: 70-2800 RPM
  • Load compensating circuit keeps RPM constant
  • Speed control accepts any input from 100VAC to 240VAC and automatically converts it to 90VDC output to the motor
  • Eight-foot, three-wire power cord

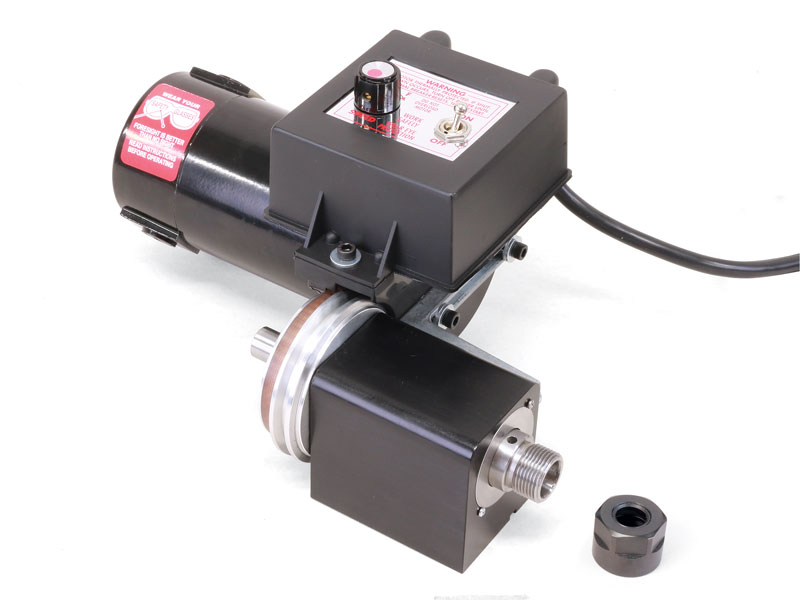

P/N 6514

(Click on image for a larger view).

NOTE: We do not sell the collets used with the ER-16 spindle. Those are available through MSC Industrial Supply Co. or other tool supply sources.

ER-16 Spindle

  • Price: $611.86
  • P/N 6514-Spindle nose: ER-16 collet (collet nut included)
  • 1/2 HP 90-volt high-torque DC motor (single direction)
  • 2-step "V" belt pulley (2nd position for more torque at low RPM)
  • Fiberglass-reinforced urethane drive belt
  • Variable speed electronic speed control: 70-2800 RPM
  • Load compensating circuit keeps RPM constant
  • Speed control accepts any input from 100VAC to 240VAC and automatically converts it to 90VDC output to the motor
  • Eight-foot, three-wire power cord

Back to top

Sherline Headstock and Spindle (Dovetailed Base) with 90-Volt DC Motor

P/N 6517

(Click on image for a larger view).

3/4-16/#1 Morse Spindle

  • Price: $709.83
  • P/N 6517-Spindle nose: 3/4-16 external thread, #1 Morse internal taper; DC motor and speed control
  • Two 20 mm, Class 5, lifetime-lubricated bearings with dust cap
  • Adjustable preload on spindle bearings
  • Brass gib on dovetailed base fits Sherline steel dovetailed bed material
  • Includes mounting point to attach saddle nut on Sherline leadscrews

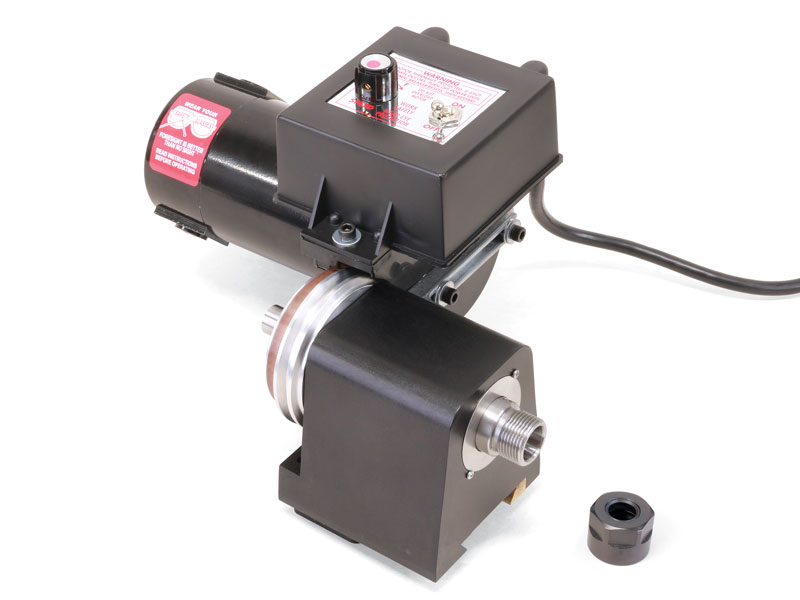

P/N 6518

(Click on image for a larger view).

NOTE: We do not sell the collets used with the ER-16 spindle. Those are available through MSC Industrial Supply Co. or other tool supply sources.

ER-16 Spindle

  • Price: $750.63
  • P/N 6518-Spindle nose: ER-16 collet (collet nut included)
  • Two 20 mm, Class 5, lifetime-lubricated bearings with dust cap
  • Adjustable preload on spindle bearings
  • Brass gib on dovetailed base fits Sherline steel dovetailed bed material
  • Includes mounting point to attach saddle nut on Sherline leadscrews

Back to top

Sherline Headstocks and Spindles on Dovetailed Bases

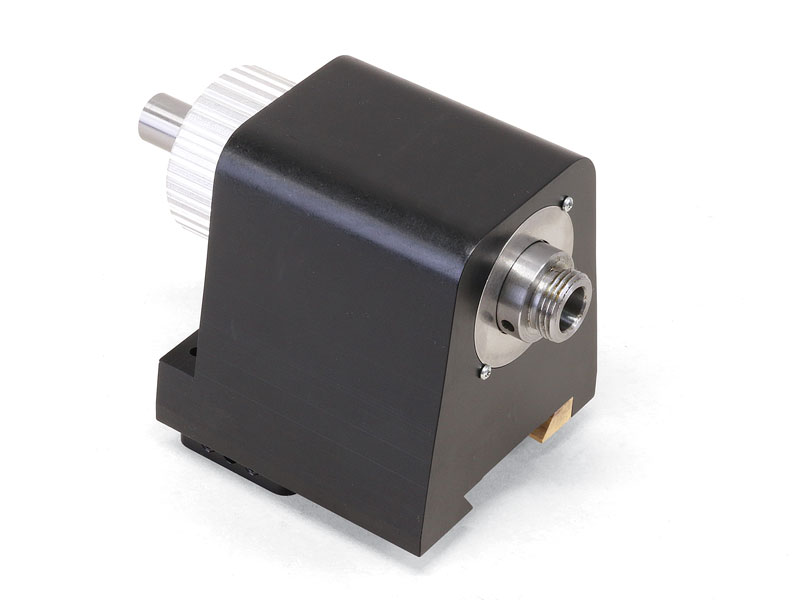

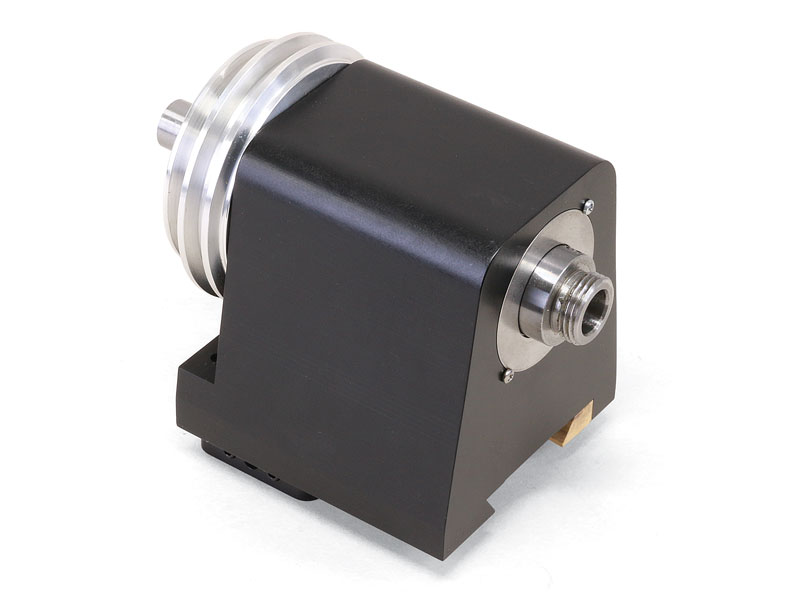

P/N 6519 P/N 6520

(Click on images for a larger view).

3/4-16/#1 Morse Spindles

  • Price: $390.07
  • P/N 6519: with cog belt pulley
  • P/N 6520: with 2-step "V" belt pulley
  • Two 20 mm, Class 5, lifetime-lubricated bearings with dust cap
  • Adjustable preload on spindle bearings
  • Brass gib on dovetailed base fits Sherline steel dovetailed bed material
  • Includes mounting point to attach saddle nut on Sherline leadscrews

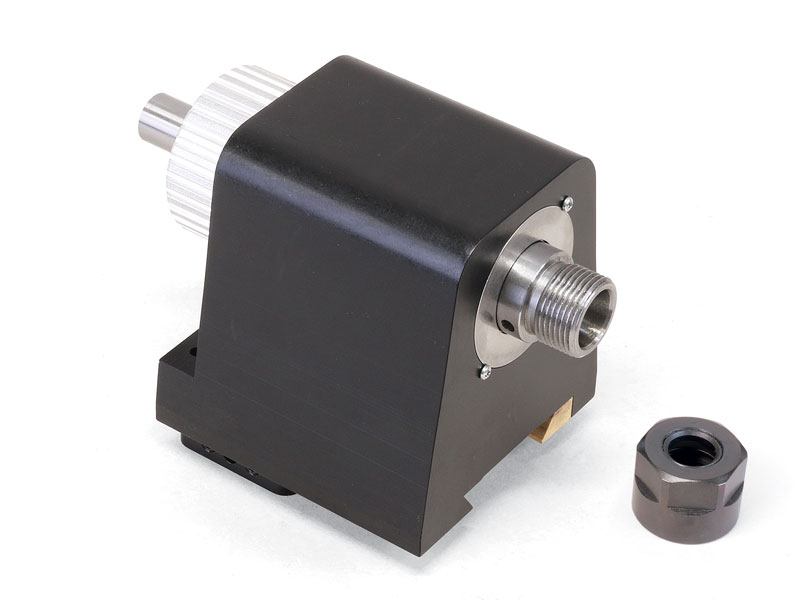

P/N 6521 P/N 6522

(Click on images for a larger view).

NOTE: We do not sell the collets used with the ER-16 spindle. Those are available through MSC Industrial Supply Co. or other tool supply sources.

ER-16 Spindles

  • Price: $430.86
  • P/N 6521: with cog belt pulley
  • P/N 6522: with 2-step "V" belt pulley
  • Two 20 mm, Class 5, lifetime-lubricated bearings with dust cap
  • Adjustable preload on spindle bearings
  • Brass gib on dovetailed base fits Sherline steel dovetailed bed material
  • Includes mounting point to attach saddle nut on Sherline leadscrews
  • ER-16 collet nut


Back to top


Sherline Headstock and Spindle (Flat Base)

P/N 6523

(Click on image for a larger view).

3/4-16/#1 Morse Spindle

  • Price: $299.57
  • P/N 6523-Spindle nose: 3/4-16 external thread, #1 Morse internal taper; 2-step V-belt pulley
  • Two 20 mm, Class 5, lifetime-lubricated bearings with dust cap
  • Adjustable preload on spindle bearings
  • Two 1/4-20 mounting holes drilled and tapped on centerline on bottom of base
  • Alignment key slot and key provided
  • Same base as is used on 6513 above but without motor or speed control


Back to top

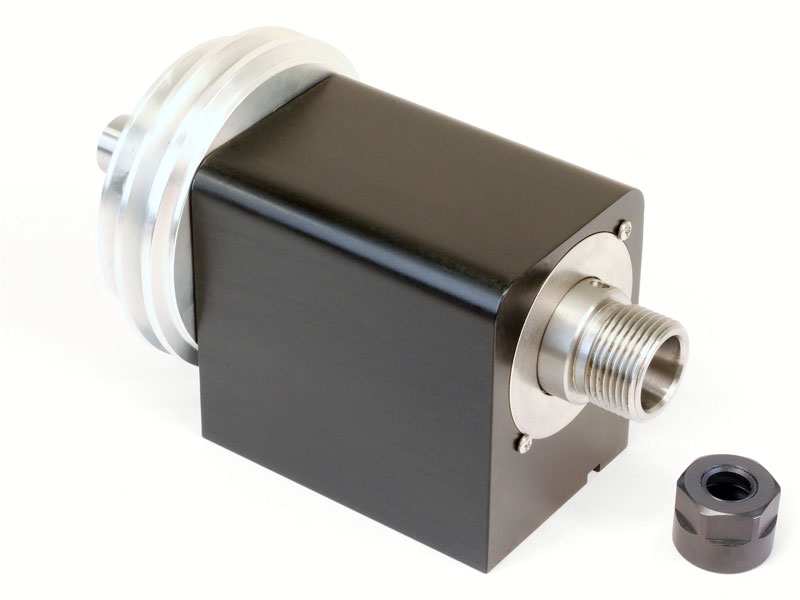

P/N 6524

(Click on image for a larger view).

NOTE: We do not sell the collets used with the ER-16 spindle. Those are available through MSC Industrial Supply Co. or other tool supply sources.

ER-16 Spindle

  • Price: $346.40
  • P/N 6524-Spindle nose: ER-16 collet nose (collet nut included); 2-step V-belt pulley
  • Two 20 mm, Class 5, lifetime-lubricated bearings with dust cap
  • Adjustable preload on spindle bearings
  • Two 1/4-20 mounting holes drilled and tapped on centerline on bottom of base
  • Alignment key slot and key provided
  • Same base as is used on 6513 above but without motor or speed control




Back to top


Sherline Stepper Motor Mounting Kit

P/N 6500

(Click on image for a larger view)

Standard Headstock 3C Collet Headstock

(Click on the images for a larger view)

About the Sherline Stepper Motor Mounting Kit

Certain jobs require the headstock to be rotated at a fixed and accurately controlled slow speed. Driving the spindle with a computer-controlled stepper motor is an excellent way to accomplish this.

The stepper motor mounting kit includes the items you need to mount a stepper motor to drive any Sherline standard or industrial headstock spindle that accepts a motor mounting bracket.

  • Price: $162.90
  • P/N 6500
  • Motor Bracket
  • DC Motor Stand Off Assembly
  • Timing belt
  • 15-tooth motor pulley
  • Industrial 30-tooth spindle cog pulley
  • Stepper spindle motor mount
  • Mounting hardware
  • (A 10-tooth drive pulley is also available for special order for a slower 3:1 drive ratio instead of the standard 2:1 ratio. See P/N 65003.)

Click the MORE INFO button for details on using a stepper motor to drive the headstock.


The 3D ZIP file includes three IGES files: one with a standard headstock setup and two with 3C collet headstock setups. Extract the .zip file to the drive location of your choice.
