Sherline Accessories

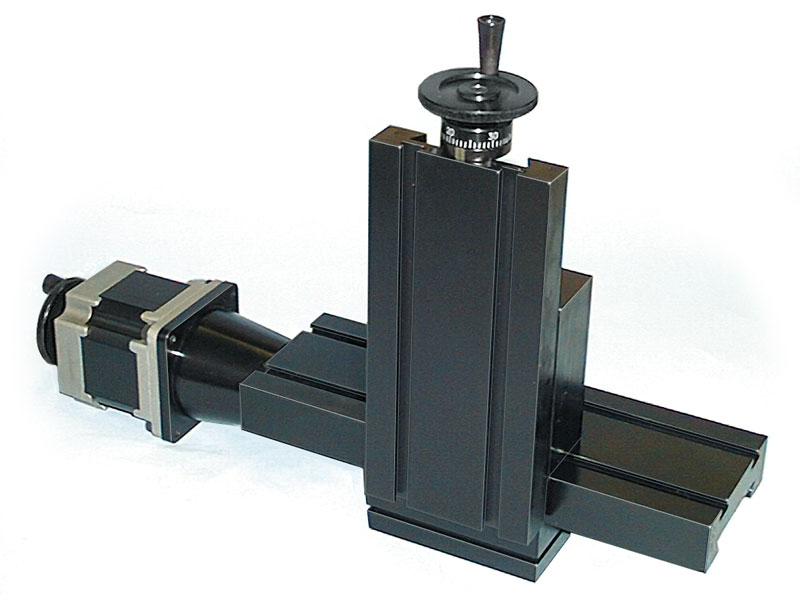

An accessory, the P/N 1185 8" manual vertical milling table, is shown attached to the table of the P/N 6552 single-axis CNC machine slide. The large line of accessories available for Sherline Industrial slides and spindles significantly enhances their utility.

Sherline Products Inc. manufactures a complete line of miniature lathes and mills. Over the past 30 years, a very large line of accessories has been developed to fit these tools. Many of them can be used directly on the industrial slides and components that share the same tables and T-slots. Included in the list below are links to the instructions for each accessory when available.

To download a price list for Sherline accessories that compliment the industrial tool line, click on the link below. (Adobe Acrobat is required to view the file. See main menu page for a link to Adobe to obtain the program if you don't already have it.) This price list is duplicated at the end of this page as well.

ACCESSORY PRICE LIST.pdf

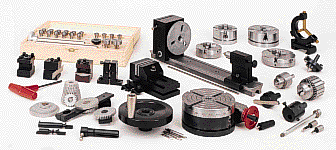

Shown below are just a few examples of accessories manufactured by Sherline to fit their machine tool line. These items can be used with the industrial line as well, should your application require it.

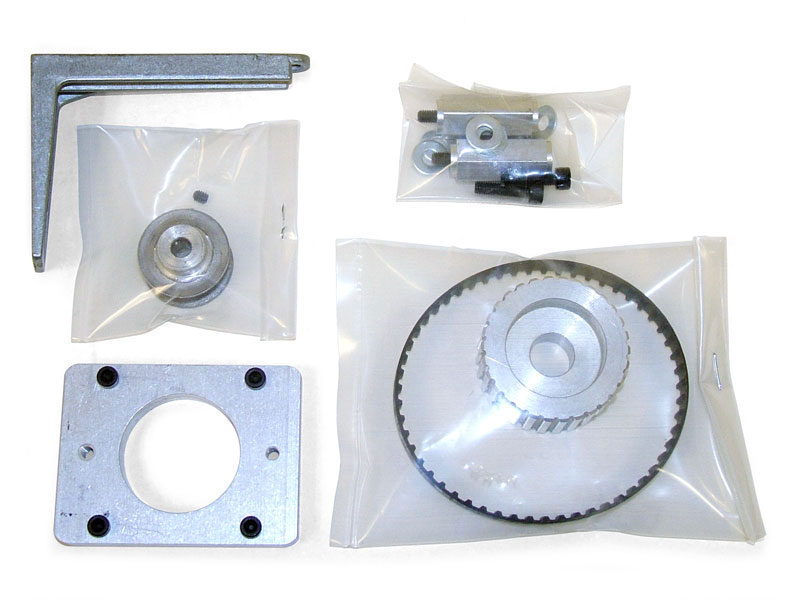

STEPPER MOTOR MOUNTING KIT

P/N 6500. This kit allows mounting of a stepper motor to a Sherline headstock in place of the standard DC motor. (Click on linked part number for details.)


ROTARY TABLE

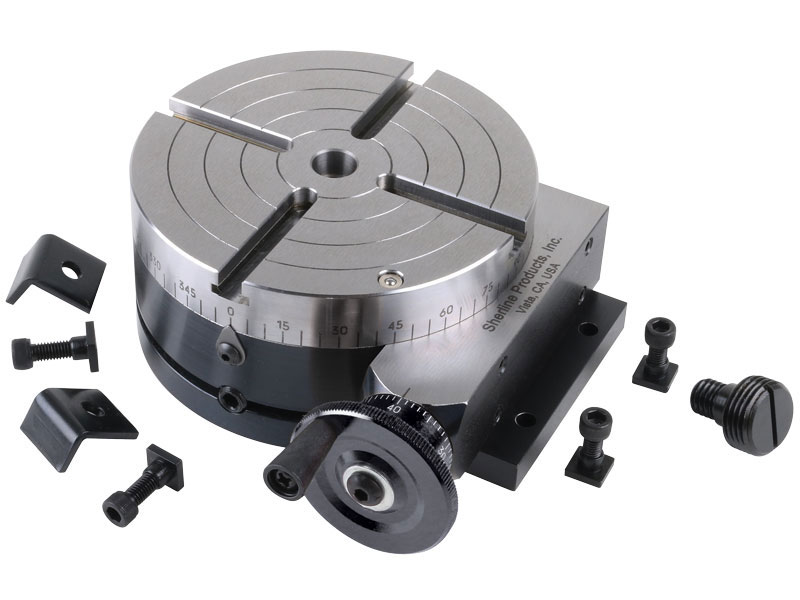

Sherline's rotary table (P/N 3700) is one of the many accessories that could be used on any Sherline Industrial slide or table. Its 2-inch height and 4-inch diameter make it appropriate for providing an accurate rotary function in a small area. A CNC-ready version is also available, as is a complete, stand-alone CNC rotary indexer based on the same table (P/N 8700).

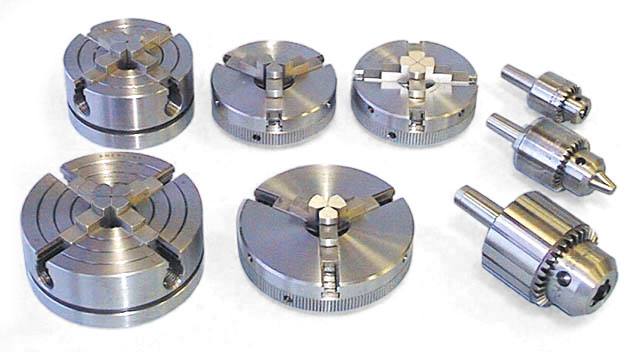

(Left photo) Sherline manufactures 3-jaw and 4-jaw chucks that will thread directly onto the 3/4-16 thread of the Sherline industrial spindles. They can also be clamped to the tables as work-holding fixtures. Drill chucks can be held in the #1 Morse internal taper of the spindle.

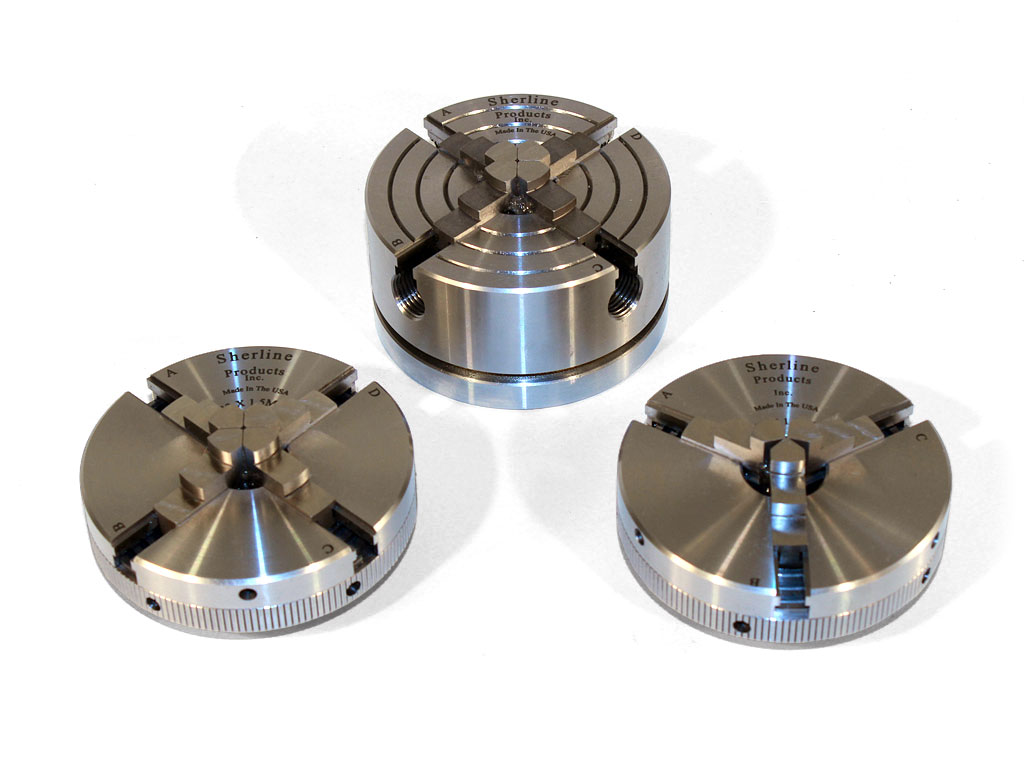

(Right photo) Sherline now also offers 3.1" chucks that thread onto the ER-16 spindle that is optional on all Sherline IPD headstocks. Available are 3- and 4-jaw self-centering chucks and a 4-jaw independent chuck.

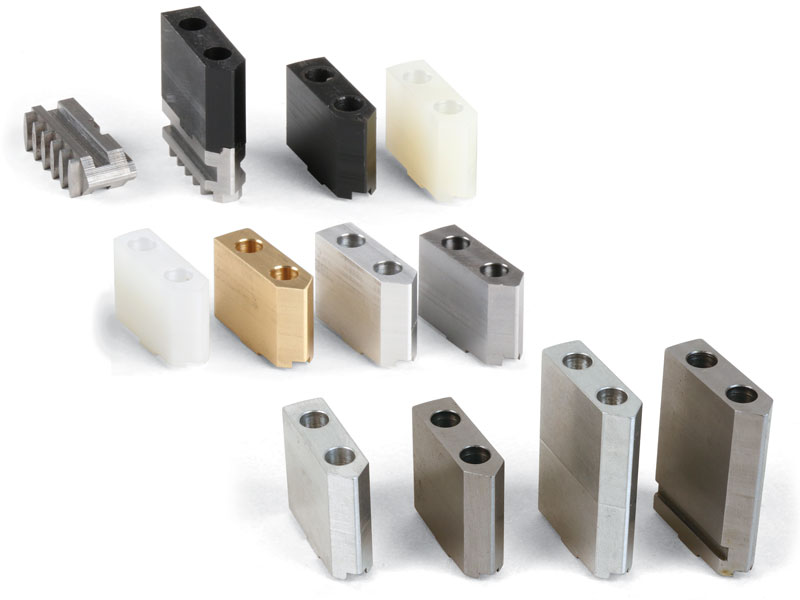

CHUCKS

Sherline offers a line of 3-jaw, 4-jaw and drill chucks. The 3- and 4-jaw chucks are manufactured in Sherline's own plant and have a 3/4-16 spindle thread to fit most of the Sherline Industrial headstocks. 22 x 1.5 mm threads are also available on some chucks so they can be used with the optional ER-16 spindles. The drill chucks are  equipped with a #1 Morse tapered arbor that can also be held in the headstock and secured with a drawbolt. The 3- and 4-jaw chucks are available in either 2.5" or 3.1" diameters. The 3-jaw chucks are self-centering. 4-jaw chucks are available with either self-centering jaws or independently adjusted jaws. The chuck jaws are reversible to hold larger parts. The drill chucks are available in 5/32", 1/4" and 3/8" sizes. #0 Morse arbors are also available for the drill chucks for use in the tailstock of a Sherline lathe.

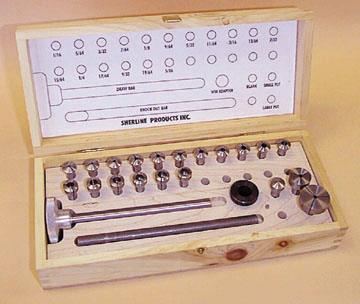

Deluxe WW collet set in finger-jointed wooden box

COLLETS AND END MILL HOLDERS

WW COLLETS-Sherline manufactures its own line of WW collets. The collet adapter fits in the #1 Morse headstock taper. Collets are drawn into the collet adapter with a drawbar inserted from the back of the spindle. WW collets are open all the way through to allow long material up to the size of the collet to be held through the spindle. Collets go from 1/16" to 5/16" by 64ths or from 1.5mm to 8mm by .5mm increments. Shown above is a deluxe inch collet set with a selection of 17 collets (14 in metric set), drawbar, knockout bar, blank collet and collet pot chucks in a custom wooden box. Collets are also available individually.

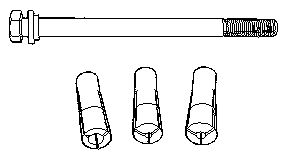

MILL COLLETS-Mill collets are also available in sizes from 3/32" to 1/4" or 3.0mm, 4.0mm and 6.0mm. Unlike a WW collet, mill collets do not have a hole through the center. They are made to hold single-ended milling cutters very accurately on center.



ER-16 COLLETS-Sherline Industrial spindles can be ordered with a nose that accepts ER-16 Collets. Although Sherline Industrial does not offer ER-16 collets or nuts for these spindles, they are available from any major industrial tool supplier. Sherline uses the 22 x 1.5mm metric thread. Chucks area available for this thread. (See the Chucks section above.)

END MILL HOLDERS-These accurately machined holders thread onto the 3/4-16 spindle thread and will hold double-ended end mills. The 3/4-16 internal threads are single-pointed during a multiple-step CNC machining operation to assure concentricity. The most common size is 3/8", but other size end mill holders are also available to hold 3/16", 1/4", 5/16", 6.0mm, 8.0mm and 10mm end mills. A set screw tightens on the flat of the end mill to secure it in place. Keeping several end mill holders on hand with cutters already mounted is like having a quick-change tool system, as the holders can be quickly threaded onto or removed from the spindle.


OTHER SPINDLE NOSE TOOLS

Sherline offers a large selection of tools that would be used in the spindle of a vertical mill. Below is a list of some of the tools that might be useful in your applications. All have a #1 Morse taper and are held in the spindle with a drawbolt. (To see an illustration and read more about each tool, click on the linked name.)

Fly cutter, P/N 3052

Single-flute inserted tip fly cutter, P/N 7620

Gear tooth cutter, P/N 3217

Boring head, P/N 3054

Slitting saw holder, P/N 3065

Mill cutter arbors, P/N 3230, 3231, 3235, 3236

Morse #1 blank, P/N 3055 (Turn your own custom tool holder)


OTHER ACCESSORIES

A large selection of tools, collets and work-holding devices have been designed to compliment the miniature machine tool line. For a complete list of accessories, see Sherline's "Accessories" page at www.sherline.com/accessor.htm. In it is a list of links to the instructions for each accessory. You can read about each item in detail and find out how it is used. Some of the work-holding fixtures that might be of use to you are listed below, but the list is by no means complete yet.

Hold-down clamp set, P/N 3012

Step block hold-down set, P/N 3013

90 angle plate, P/N 3559

Tooling plate, P/N 3560

4-jaw hold-down set, P/N 3058

Mill vise, P/N 3551

Rotating mill vise base, P/N 3570

Tilting angle table, P/N 3750

Stepper Motor, P/N 67130 (.pdf file of specification sheet)

Accessory Price List

P/N

Description

Price

Chucks

1010

5/32" Jacobs drill chuck w/ #1 Morse arbor

$73.50

1030

4-jaw (independent) chuck, 3.125" Dia.

141.75

1040

3-jaw self-centering chuck, 3.125" Dia.

147.00

1041

3-jaw self-centering chuck, 2.5" Dia.

105.00

1044

4-jaw (independent) chuck, 2.5" Dia.

115.50

1075

4-jaw self-centering chuck, 2.5" Dia.

136.50

1076

4-jaw self-centering chuck, 3.1" Dia.

173.25

3072

1/4" Jacobs drill chuck w/ #1 Morse arbor

52.50

3073

3/8" Jacobs drill chuck w/ #1 Morse arbor

63.00

Collets

1160

5-pc. WW collet set w/ adapter and drawbar (1/16", 1/8", 3/16", 1/4" and 5/16" collets)

$94.50

1161

WW collet adapter and drawbar

52.50

1162

Deluxe WW collet set, Inch (17 collets, pot chucks, adapter, drawbar in wooden box)

288.75

1163

8.0mm Collet adapter and drawbar

55.00

1179

Deluxe WW collet set, Metric (14 collets, pot chucks, adapter, drawbar in wooden box)

257.25

116004... to 116020

WW collets, 1/16" to 5/16" by 64ths

(Sizes down to 1/64" also available--call for prices)

18.00 ea. (more for small sizes)

117803... to 117880

WW collets, 1.5 mm to 8.0 mm by .1 mm

(Sizes 0.3 mm to 1.4 mm available at higher prices--call for pricing)

18.00 ea. (more for small sizes)

2082

WW collet, spl. Order, size to .320" (allow 3 wks)

31.50

2083

WW collet with 1" blank

31.50

2100

3/4" collet pot chuck

26.25

2101

1" collet pot chuck

28.50

2102

1-1/4" collet pot chuck

31.50

3060

Mill collet set, Inch (1/8", 3/16", 1/4", drawbolt)

45.00

3090

Mill collet set, Metric (3.0, 4.0, 6.0mm, drawbolt)

47.25

3087

3/32" mill collet

21.00

3089

5/32" mill collet

21.00

3091

7/32" mill collet

21.00

3092

3.0mm mill collet

17.00

3093

4.0mm mill collet

17.00

3094

6.0mm mill collet

17.00

3095

1/8" mill collet

17.00

3096

3/16" mill collet

17.00

3097

1/4" mill collet

17.00

3098

Mill collet, special order, .125" to .312" (allow 3 weeks for delivery)

31.50

CNC Motion Controllers

8700

CNC 4" rotary table w/ controller, pwr. sup., etc.

$761.25

8800

CNC linear controller w/ stepper motor, pwr. sup.

(Works with 20 TPI leadscrew only)

472.50

P/N

DESCRIPTION

PRICE

Accessories

1185

Vertical Milling table (Metric P/N 1184)

$126.00

1187

Chuck-to-T-slot adapter

8.00

1270

Compound slide (Metric P/N 1280)

131.25

3012

Hold-down clamp set

26.25

3013

Step block hold-down clamp set

42.00

3052

Fly cutter, #1 Morse w/ drawbolt

36.75

3054

Boring head, #1 Morse w/ drawbolt

73.50

3055

#1 Morse blank

17.00

3056

T-nuts for 10-32 bolts, pkg. Of 10

8.50

3058

4-jaw chuck hold-down clamp set

6.50

3061

Boring tool (.60 max. depth, .25" min. hole)

15.75

3063

Boring tool (1.0" max. depth, 5/16" min. hole)

15.75

3064

Boring tool (1.5" max. depth, 5/16" min. hole)

19.00

3065

Slitting saw holder, #1 Morse w/ drawbolt

42.00

3075

5/16" end mill holder (3/4-16 thread)

31.50

3076

6.0mm end mill holder (3/4-16 thread)

31.50

3077

8.0mm end mill holder (3/4-16 thread)

31.50

3078

10.0mm end mill holder (3/4-16 thread)

31.50

3079

3/8" end mill holder (3/4-16 thread)

31.50

6079*

1/4" end mill holder (3/4-16 thread)

31.50

6080*

3/16" end mill holder (3/4-16 thread)

31.50

3217

Gear tooth cutter and 1/4" blank, #1 Morse

36.75

3230

Mill cutter arbor, 7/8" dia. (short), #1 Morse

52.50

3231

Mill cutter arbor, 7/8" dia. (long), #1 Morse

52.50

3235

Mill cutter arbor, 1" dia. (short), #1 Morse

52.50

3236

Mill cutter arbor, 1" dia. (long), #1 Morse

52.50

3551

Milling vise

78.75

3559

90 angle plate, 3" x 3" x 10" w/ T-slots

105.00

3560

Mill tooling plate

63.00

3570

Rotating mill vise base for P/N 3551

105.00

3575

Mill vise with rotating base (P/N 3551 + 3570)

173.25

3700

4" precision rotary table

283.50

3701

Right angle attachment for 3700

78.75

3702

Right angle tailstock for 3700

78.75

3750

Tilting angle table

105.00

67130

Stepper motor, 2 amp, 100 oz-in, 23 size, double shaft

68.25

7505

Parallels, set of 5 pair, 1/4" to 3/4" by 8ths

31.50

7620

Single-flute, inserted carbide tip fly cutter, #1 M

63.00

7622

Extra carbide tips for 7620

16.50

Prices subject to change without notice. 1/14/16
